Description

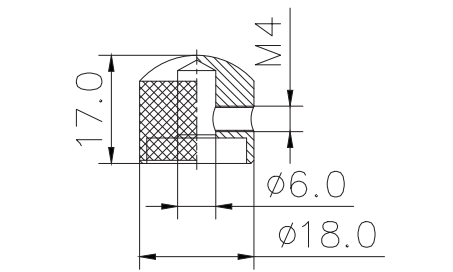

Knurled domed knob Φ18.0 mm × 17.0 mm with a Φ6.0 mm shaft bore and M4 side set screw.
Knob / cap specs
- Outer diameter φ18 mm
- Inner diameter φ6 mm
- Body height 17 mm (0.669 in)
- Overall height 17 mm (0.669 in)
- Thread M4
Hardware
- Material Plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Knurled exterior with domed top
- Side-mounted M4 set screw with conical bore tip
