Knobs
Request a quote → C-2004
C-2004
C-2004
Loading 3D model…
Loading 3D model…
Description

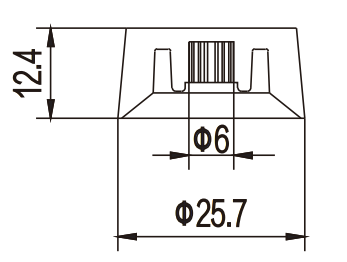

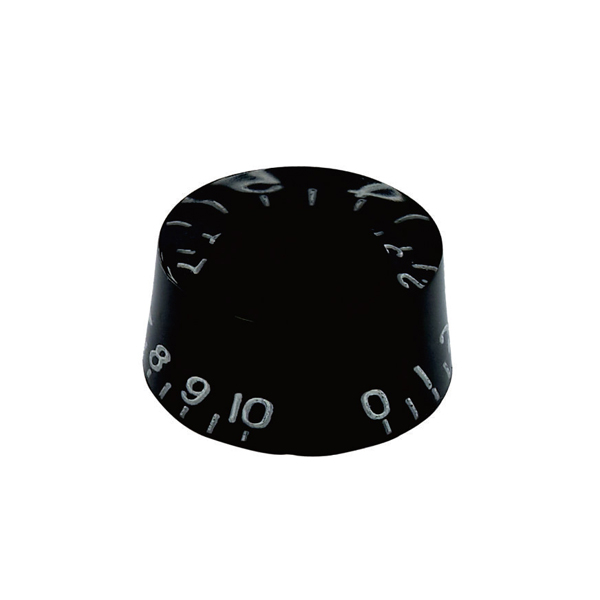

Tapered pot knob Φ25.7 mm base × 12.4 mm with a Φ6.0 mm splined shaft bore.
Knob / cap specs
- Outer diameter φ25.7 mm
- Body height 12.4 mm (0.488 in)
- Overall height 12.4 mm (0.488 in)
- Hole diameter φ6 mm
Hardware
- Material Plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Trapezoidal tapered profile
- Splined 6 mm pot shaft bore
