Knobs
Request a quote → C-2006
C-2006
C-2006
Loading 3D model…
Loading 3D model…
Description

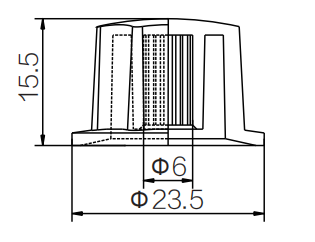

Bell-style pot knob Φ23.5 mm base × 15.5 mm with a Φ6.0 mm splined shaft bore.
Knob / cap specs
- Outer diameter φ23.5 mm
- Body height 15.5 mm (0.61 in)
- Overall height 15.5 mm (0.61 in)
- Hole diameter φ6 mm
Hardware
- Material Plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Flared base with domed top
- Splined 6 mm pot shaft bore
