Knobs
Request a quote → C-2009-V
C-2009-V

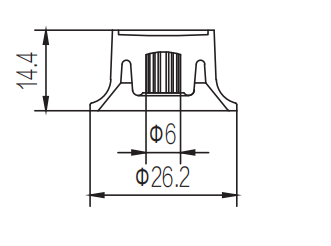

Technical drawingC-2009-V
Description
Bell-style pot knob Φ26.2 mm base × 14.4 mm with a Φ6.0 mm splined shaft bore.
Knob / cap specs
- Outer diameter φ26.2 mm
- Body height 14.4 mm (0.567 in)
- Overall height 14.4 mm (0.567 in)
- Hole diameter φ6 mm
Hardware
- Material Plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Flared base with concave top recess
- Splined 6 mm pot shaft bore
