E-1018
Technical drawingE-1018
Description

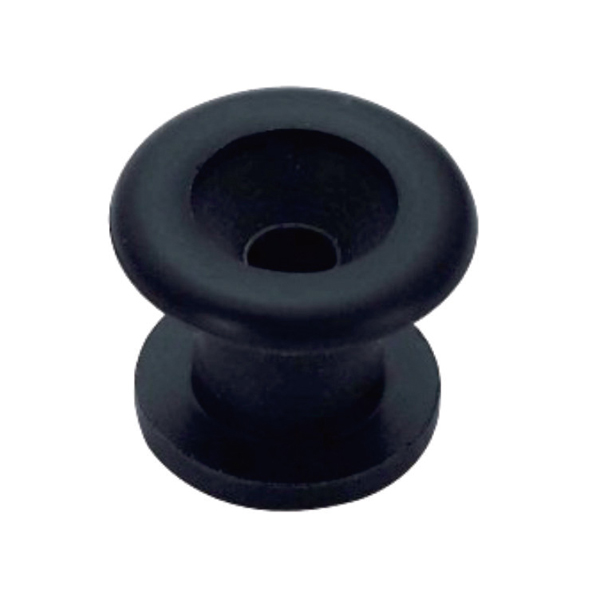

Mushroom strap button Φ14.2 mm top × 11.4 mm tall with Φ3.8 mm mounting hole and Φ11.9 mm base.
Strap button / electronics specs
- Outer diameter φ14.2 mm
- Bottom width 11.9 mm (0.469 in)
- Overall height 11.4 mm (0.449 in)
- Hole diameter φ3.8 mm
Hardware
- Material Zinc alloy / steel (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Rounded top tapering to cylindrical neck on flat flange base
- Countersunk top hole into Φ3.8 mm straight bore
