Description

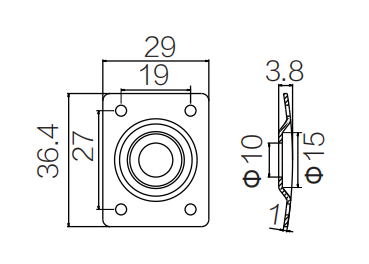

F-1002 is an output jack plate, 29 × 36.4 mm rectangular with φ10 mm jack hole and recessed φ15 mm area.
Output jack plate specs
- Overall width 29 mm (1.142 in)
- Overall length 36.4 mm (1.433 in)
- Plate thickness 1 mm (0.039 in)
- Hole diameter φ10 mm
- Reference Four mounting holes on 19 mm × 27 mm rectangular center-to-center spacing.
Hardware
- Material Plastic / metal (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Rectangular 29 mm × 36.4 mm plate with rounded corners
- Recessed φ15 mm area around φ10 mm jack hole, 3.8 mm profile depth
About measurements
- Mount hole spacing
-
Four mounting holes on 19 mm × 27 mm rectangular center-to-center spacing.
Center-to-center distance between mounting holes on the bridge plate.
