Description

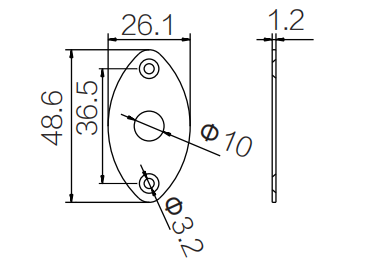

F-1005 is an output jack plate, 26.1 × 48.6 mm oval with φ10 mm jack hole and 36.5 mm mount spacing.
Output jack plate specs
- Overall width 26.1 mm (1.028 in)
- Overall length 48.6 mm (1.913 in)
- Plate thickness 1.2 mm (0.047 in)
- Hole diameter φ10 mm
- Mount spacing 36.5 mm (1.437 in)
- Reference Two φ3.2 mm mounting holes, 36.5 mm center-to-center.
Hardware
- Material Plastic / metal (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Oval 26.1 mm × 48.6 mm flat plate
- Two φ3.2 mm mounting holes at each end
About measurements
- Mount hole spacing
-
36.5 mm (1.437 in)
Center-to-center distance between mounting holes on the bridge plate.
