Description

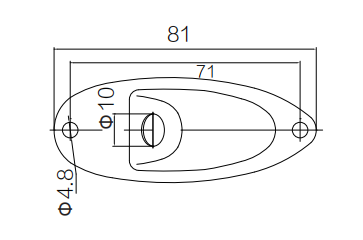

F-1008 is an output jack plate, 81 mm long with φ10 mm jack hole and 71 mm mount spacing.
Output jack plate specs
- Overall width 81 mm (3.189 in)
- Hole diameter φ10 mm
- Mount spacing 71 mm (2.795 in)
- Reference Two φ4.8 mm mounting holes, 71 mm center-to-center.
Hardware
- Material Plastic / metal (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Oval football-shaped plate, 81 mm long
- Recessed center area for jack mounting
About measurements
- Mount hole spacing
-
71 mm (2.795 in)
Center-to-center distance between mounting holes on the bridge plate.
