Jack Plates
Request a quote → F-1009
F-1009
F-1009
Loading 3D model…
Loading 3D model…
Description

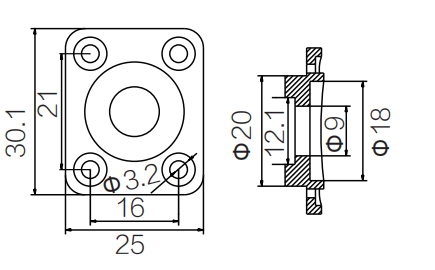

F-1009 output jack plate, 25 × 30.1 mm rectangular plate with φ9 mm jack bore and four φ3.2 mm corner mounting holes.
Output jack plate specs
- Overall width 25 mm (0.984 in)
- Overall length 30.1 mm (1.185 in)
- Hole diameter φ9 mm
- Mount spacing 16 mm (0.63 in)
- Reference Four-screw mount on 16 mm × 21 mm centers; φ20 mm rear cup with φ18 mm front recess.
Hardware
- Material Plastic / metal (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Rectangular plate with rounded corners and recessed jack cup
- Four φ3.2 mm corner mounting holes on 16 mm × 21 mm layout
About measurements
- Mount hole spacing
-
16 mm (0.63 in)
Center-to-center distance between mounting holes on the bridge plate.
