FRTFR30

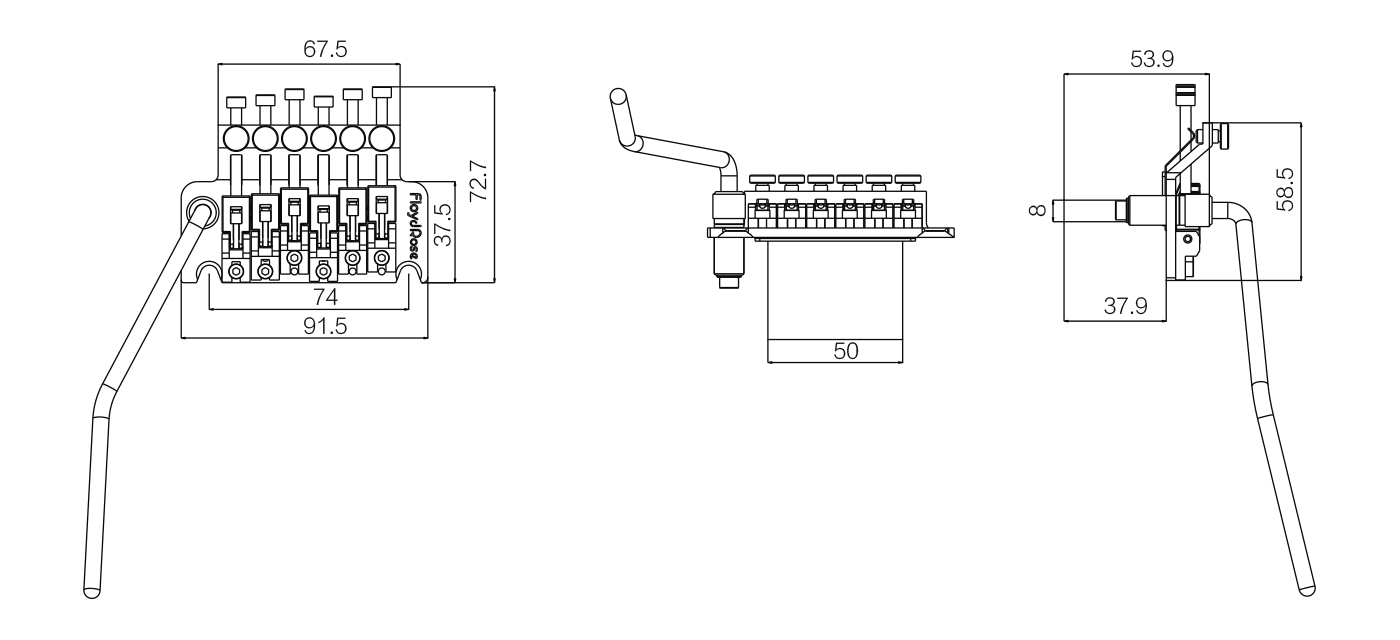

Technical drawingFRTFR30
Description
FRTFR30 Floyd Rose licensed 6-string tremolo bridge, 91.5 × 37.5 mm plate, 74 mm mount spacing, 37.9 mm sustain block.
Tremolo bridge specs
- String count 6-string
- String spacing undefined mm (NaN in)
- String spread 67.5 mm (2.657 in)
- Plate width 91.5 mm (3.602 in)
- Plate depth 37.5 mm (1.476 in)
- Mount hole spacing 74 mm (2.913 in)
- Mount pattern Center-to-center knife-edge pivot spacing.
- Saddle material Steel saddles (standard)
- Sustain block width 50 mm (1.969 in)
Hardware
- Sustain block height 37.9 mm (1.492 in)
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Floyd Rose licensed double-locking tremolo with fine tuners
- 50 mm wide sustain block, 37.9 mm block height
About measurements
- Mount hole spacing
-
74 mm (2.913 in)
Center-to-center distance between mounting holes on the bridge plate.
- Sustain block
-
37.9 mm (1.492 in) block height; 50 mm (1.969 in) block width
Tremolo block depth sets spring tension range; verify against body cavity depth.
