FRTS3000

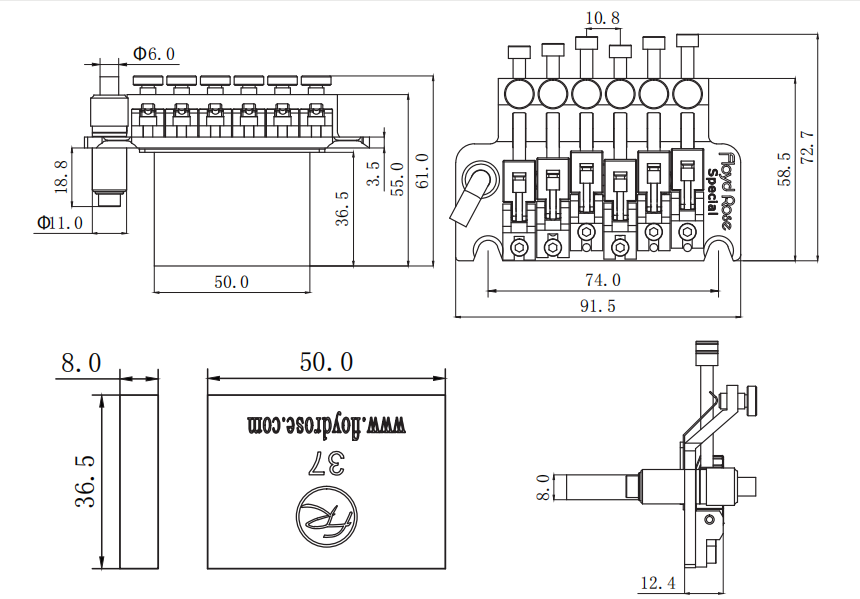

Technical drawingFRTS3000
Description
FRTS3000 Floyd Rose Special 6-string tremolo bridge, 10.8 mm spacing, 91.5 × 58.5 mm plate, 74 mm mount spacing, 36.5 mm block.
Tremolo bridge specs
- String count 6-string
- String spacing 10.8 mm (0.425 in)
- String spread 54 mm (2.126 in)
- Plate width 91.5 mm (3.602 in)
- Plate depth 58.5 mm (2.303 in)
- Mount hole spacing 74 mm (2.913 in)
- Mount pattern Center-to-center mounting stud spacing.
- Saddle material Steel saddles (standard)
- Hole diameter φ11 mm (0.433 in)
- Sustain block width 50 mm (1.969 in)
Hardware
- Sustain block height 36.5 mm (1.437 in)
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Floyd Rose Special double-locking tremolo with fine tuners
- 50 mm wide sustain block, 36.5 mm block height
About measurements
- String spacing
-
10.8 mm (0.425 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
74 mm (2.913 in)
Center-to-center distance between mounting holes on the bridge plate.
- Sustain block
-
36.5 mm (1.437 in) block height; 50 mm (1.969 in) block width
Tremolo block depth sets spring tension range; verify against body cavity depth.
