FRTSSS2000

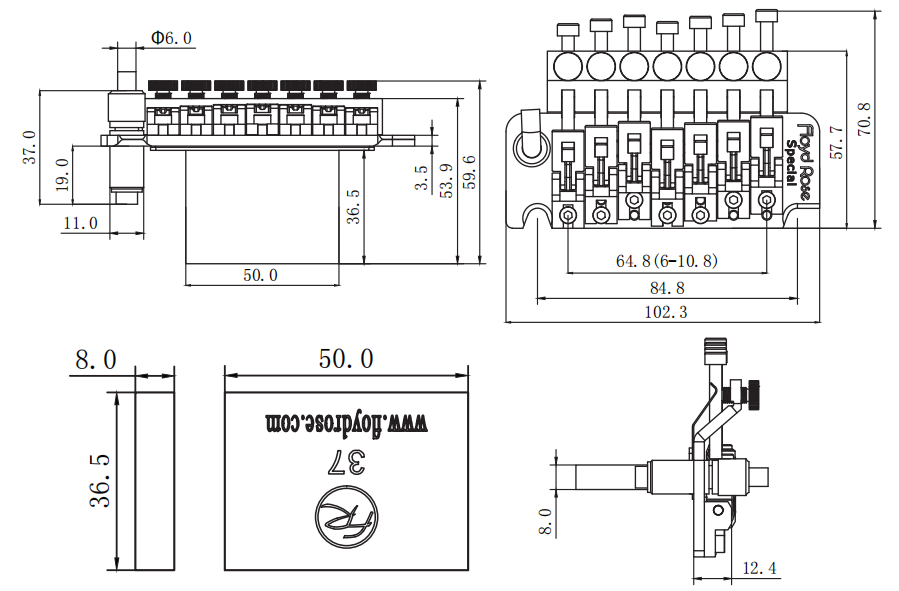

Technical drawingFRTSSS2000
Description
FRTSSS2000 Floyd Rose Special 6-string wide-plate tremolo bridge, 10.8 mm spacing, 102.3 × 57.7 mm plate, 84.8 mm mount spacing, 36.5 mm block.
Tremolo bridge specs
- String count 6-string
- String spacing 10.8 mm (0.425 in)
- String spread 64.8 mm (2.551 in)
- Plate width 102.3 mm (4.028 in)
- Plate depth 57.7 mm (2.272 in)
- Mount hole spacing 84.8 mm (3.339 in)
- Mount pattern Center-to-center mounting stud spacing.
- Saddle material Steel saddles (standard)
- Hole diameter φ6 mm (0.236 in)
- Sustain block width 50 mm (1.969 in)
Hardware
- Sustain block height 36.5 mm (1.437 in)
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Floyd Rose Special wide-plate double-locking tremolo
- 64.8 mm string spread on 84.8 mm mount spacing
About measurements
- String spacing
-
10.8 mm (0.425 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
84.8 mm (3.339 in)
Center-to-center distance between mounting holes on the bridge plate.
- Sustain block
-
36.5 mm (1.437 in) block height; 50 mm (1.969 in) block width
Tremolo block depth sets spring tension range; verify against body cavity depth.
