Acoustic Guitar Pickups
Request a quote → GT-20
GT-20
GT-20
Loading 3D model…
Loading 3D model…
Description

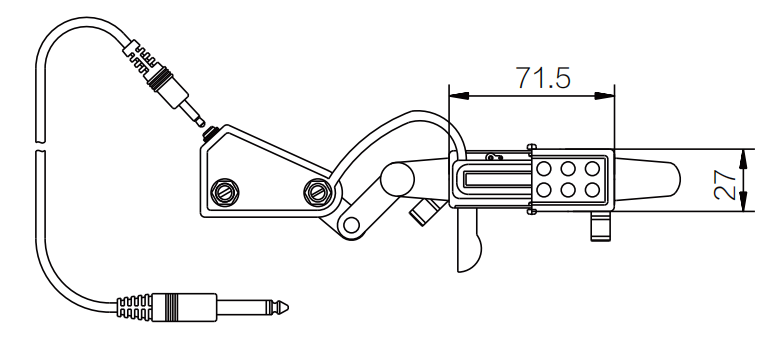

GT-20 is a piezo bridge with vibrato linkage, 71.5 × 27 mm sensing module, mini plug interconnect, and 1/4 in output.
Piezo bridge module specs
- String count 6-string
- Module length 71.5 mm (2.815 in)
- Module width 27 mm (1.063 in)
- Output / wiring Mini plug + 1/4 in output; vibrato pivot base
Hardware
- Material Plastic / metal composite
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Piezo bridge with tremolo linkage
- Dual-jack wiring harness
About measurements
- Mount hole spacing
-
Mini plug + 1/4 in output; vibrato pivot base
Center-to-center distance between mounting holes on the bridge plate.
