Truss rod cover
Request a quote → HA-2003
HA-2003

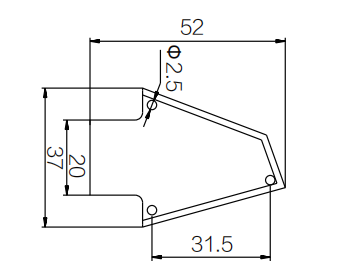

Technical drawingHA-2003
Description
HA-2003 truss rod cover, 52 × 37 mm asymmetrical tapered plate, φ2.5 mm 3-hole mount.
Headstock plate specs
- Overall width 52 mm (2.047 in)
- Bottom width 37 mm (1.457 in)
- Overall length 37 mm (1.457 in)
- Hole diameter φ2.5 mm
- Reference Tip hole 31.5 mm horizontally from base hole centerline; inner base width 20 mm (base hole pair spacing not dimensioned on drawing).
Hardware
- Material Plastic plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Asymmetrical tapered profile 52 mm long × 37 mm base, 20 mm inner base width
- φ2.5 mm 3-hole layout with 31.5 mm horizontal tip offset
About measurements
- Mount hole spacing
-
Tip hole 31.5 mm horizontally from base hole centerline; inner base width 20 mm (base hole pair spacing not dimensioned on drawing).
Center-to-center distance between mounting holes on the bridge plate.
