HA-2004

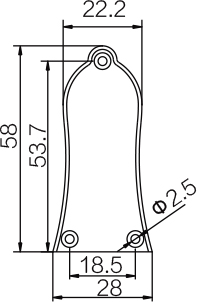

Technical drawingHA-2004
Description
HA-2004 truss rod cover, 58 × 28 mm bell profile, φ2.5 mm 3-hole mount.
Headstock plate specs
- Overall width 28 mm (1.102 in)
- Bottom width 28 mm (1.102 in)
- Overall length 58 mm (2.283 in)
- Hole diameter φ2.5 mm
- Mount spacing 18.5 mm (0.728 in)
- Reference Bottom hole pair on 18.5 mm centers; top hole center 53.7 mm from bottom edge.
Hardware
- Material Plastic plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Bell profile 58 mm long × 28 mm base, 22.2 mm upper width
- φ2.5 mm holes on 18.5 mm / 53.7 mm 3-hole layout
About measurements
- Mount hole spacing
-
18.5 mm (0.728 in)
Center-to-center distance between mounting holes on the bridge plate.
