Truss rod cover
Request a quote → HA-2013
HA-2013

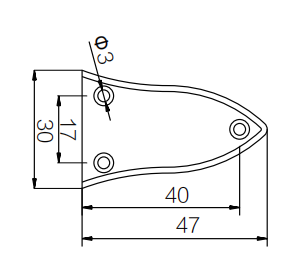

Technical drawingHA-2013
Description
HA-2013 truss rod cover, 47 × 30 mm tapered plate, φ3 mm 3-hole mount.
Headstock plate specs
- Overall width 30 mm (1.181 in)
- Bottom width 30 mm (1.181 in)
- Overall length 47 mm (1.85 in)
- Hole diameter φ3 mm
- Mount spacing 17 mm (0.669 in)
- Reference Left-edge hole pair on 17 mm centers; tip hole center 40 mm from left edge.
Hardware
- Material Plastic plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Tapered profile 47 mm long × 30 mm straight left edge
- φ3 mm holes on 17 mm / 40 mm 3-hole layout
About measurements
- Mount hole spacing
-
17 mm (0.669 in)
Center-to-center distance between mounting holes on the bridge plate.
