HC-3003

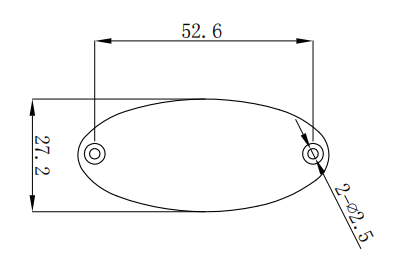

Technical drawingHC-3003
Description

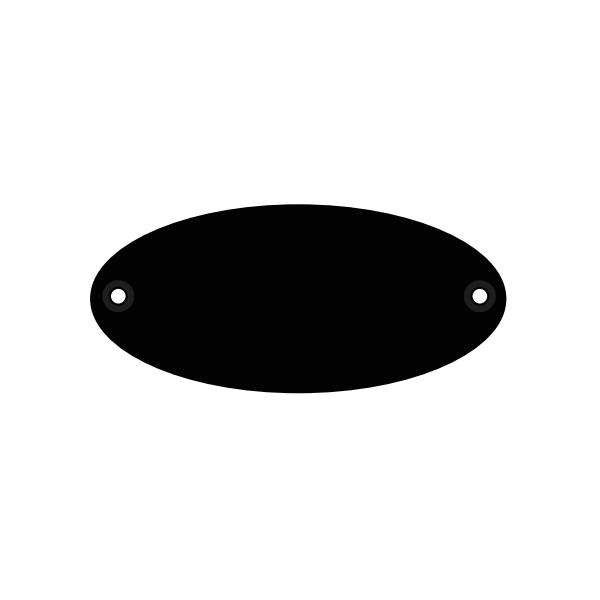

HC-3003 oval control plate, 52.6 × 27.2 mm, φ2.5 mm 2-hole mount.
Control plate specs
- Overall width 52.6 mm (2.071 in)
- Overall length 27.2 mm (1.071 in)
- Hole diameter φ2.5 mm
- Mount spacing 52.6 mm (2.071 in)
- Reference Two end holes on 52.6 mm centers.
Hardware
- Material Plastic plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Elliptical outline 52.6 mm × 27.2 mm
- Two φ2.5 mm end mounting holes
About measurements
- Mount hole spacing
-
52.6 mm (2.071 in)
Center-to-center distance between mounting holes on the bridge plate.
