HC-3007

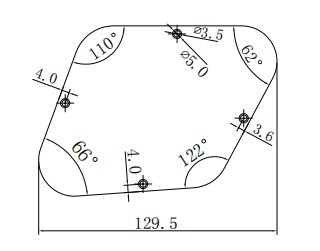

Technical drawingHC-3007
Description
HC-3007 control plate, 129.5 mm wide quadrilateral, φ3.5 mm 4-hole mount.
Control plate specs
- Overall width 129.5 mm (5.098 in)
- Hole diameter φ3.5 mm
- Reference Four mounting holes; corner angles 110° / 62° / 66° / 122°; hole offsets 4.0 / 4.0 / 3.6 mm from edges; countersink φ5.0 mm.
Hardware
- Material Plastic plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Irregular quadrilateral, 129.5 mm wide per drawing
- Four countersunk φ3.5 mm holes with φ5.0 mm countersink
About measurements
- Mount hole spacing
-
Four mounting holes; corner angles 110° / 62° / 66° / 122°; hole offsets 4.0 / 4.0 / 3.6 mm from edges; countersink φ5.0 mm.
Center-to-center distance between mounting holes on the bridge plate.
