Description

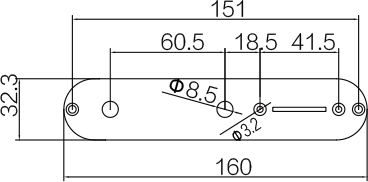

HJ-1001 Tele-style control plate, 160 × 32.3 mm with two φ8.5 mm pot holes on 60.5 mm centers and blade-switch slot.
Control plate specs
- Overall width 160 mm (6.299 in)
- Overall length 32.3 mm (1.272 in)
- Hole diameter φ8.5 mm
- Mount spacing 151 mm (5.945 in)
- Reference End-mount holes φ3.2 mm on 151 mm centers; switch mounting holes φ3.2 mm on 41.5 mm centers.
Hardware
- Material Plastic / metal plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
About measurements
- Mount hole spacing
-
151 mm (5.945 in)
Center-to-center distance between mounting holes on the bridge plate.
