Description

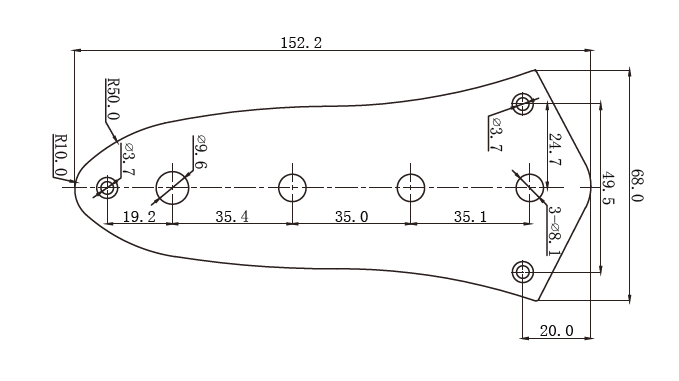

HJ-1002 Jazz Bass-style control plate, 152.2 × 68 mm with three φ8.1 mm and one φ9.6 mm control holes.
Control plate specs
- Overall width 152.2 mm (5.992 in)
- Overall length 68 mm (2.677 in)
- Hole diameter φ8.1 mm
- Reference Mounting holes φ3.7 mm; pot spacing 19.2 / 35.4 / 35.0 / 35.1 mm chain; wide-end vertical pair on 49.5 mm centers.
Hardware
- Material Plastic / metal plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
About measurements
- Mount hole spacing
-
Mounting holes φ3.7 mm; pot spacing 19.2 / 35.4 / 35.0 / 35.1 mm chain; wide-end vertical pair on 49.5 mm centers.
Center-to-center distance between mounting holes on the bridge plate.
