KA-1004
KA-1004
Loading 3D model…
Loading 3D model…
Description

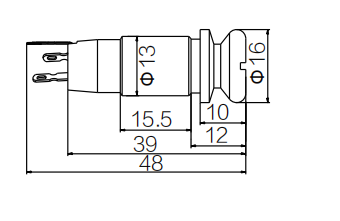

KA-1004 endpin strap-button jack, φ16 mm head, φ13 mm body, 48 mm overall with 39 mm mounting depth.
Output jack specs
- Outer diameter φ16 mm
- Overall length 48 mm (1.89 in)
- Body height 39 mm (1.535 in)
- Reference Body section φ13 mm × 15.5 mm; strap-button head 10 mm deep.
Hardware
- Material Brass / nickel-plated steel (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Combined endpin jack and strap button
- Two solder terminals
About measurements
- Mount hole spacing
-
Body section φ13 mm × 15.5 mm; strap-button head 10 mm deep.
Center-to-center distance between mounting holes on the bridge plate.
