GUITAR MACHINE HEADS
Request a quote → M-1806
M-1806

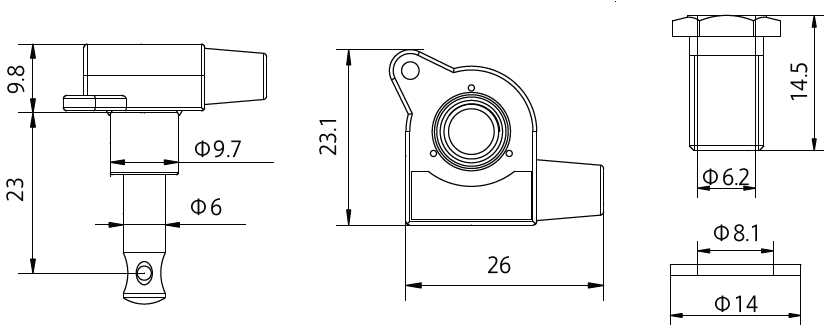

Technical drawingM-1806
Description
M-1806 is a sealed-gear machine head with φ6 mm post, 23 mm post length, φ9.7 mm headstock bore.
Tuning machine specs
- Post diameter φ6 mm
- Post length 23 mm (0.906 in)
- Headstock bore φ9.7 mm
- Housing width 26 mm (1.024 in)
- Housing depth 23.1 mm (0.909 in)
- Housing height 9.8 mm (0.386 in)
- Bushing height 14.5 mm (0.571 in)
- Bushing outer diameter φ6.2 mm
- Washer outer diameter φ14 mm
- Mount style Single-screw mounting tab
Hardware
- Material Zinc alloy
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Sealed-gear machine head
- Single-screw mounting tab
About measurements
- Post diameter
-
6 mm (0.236 in)
Diameter of the string post where the string is wound.
- Headstock bore
-
9.7 mm (0.382 in)
Recommended headstock hole diameter for the tuner collar.
Configurations
Gear ratio
18:1 26:1
