GUITAR MACHINE HEADS
Request a quote → M-2390SL
M-2390SL

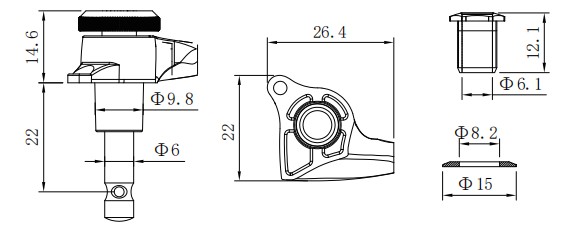

Technical drawingM-2390SL
Description
M-2390SL is a gold-plated rear-locking machine head with a large contoured button, horizontal-ridged housing, and KD Risingguitar back logo.
Tuning machine specs
- Mount style Single-screw side-mount tab
Hardware
- Material Zinc alloy / brass (standard)
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Gold finish
- Rear locking thumbwheel
- Horizontal-ridged housing
- Large contoured button
- KD Risingguitar back logo
About measurements
- Mount hole spacing
-
Product photo only (M-2390SL.jpg); no dimensioned drawing in dim-cache.
Center-to-center distance between mounting holes on the bridge plate.
Gear ratio options
Standard ratio 18:1
Economy ratio 15:1
Contact us to confirm the ratio supplied for your model and configuration.
