Request a quote → M-2470
M-2470

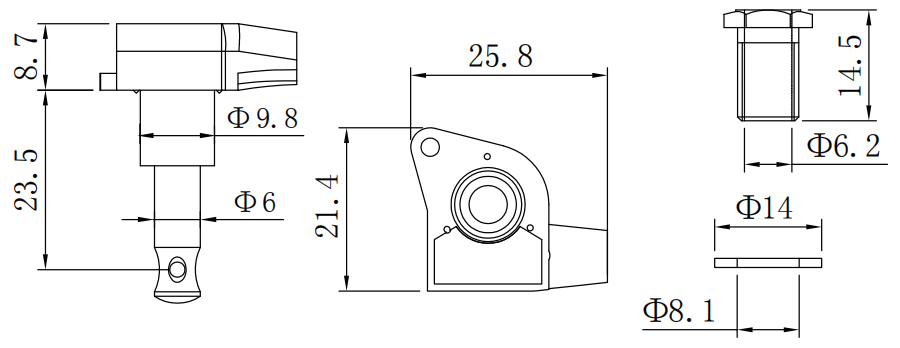

Technical drawingM-2470
Description
M-2470 is a sealed-gear machine head with φ6 mm post, 23.5 mm post length, φ9.8 mm headstock bore.
Tuning machine specs
- Post diameter φ6 mm
- Post length 23.5 mm (0.925 in)
- Headstock bore φ9.8 mm
- Housing width 25.8 mm (1.016 in)
- Housing depth 21.4 mm (0.843 in)
- Housing height 8.7 mm (0.343 in)
- Bushing height 14.5 mm (0.571 in)
- Washer outer diameter φ14 mm
- Mount style Single-screw mounting tab
Hardware
- Material Zinc alloy
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Sealed-gear machine head
- Single-screw mounting tab
About measurements
- Post diameter
-
6 mm (0.236 in)
Diameter of the string post where the string is wound.
- Headstock bore
-
9.8 mm (0.386 in)
Recommended headstock hole diameter for the tuner collar.
Gear ratio options
Standard ratio 18:1
Economy ratio 15:1
Contact us to confirm the ratio supplied for your model and configuration.
