GUITAR MACHINE HEADS
Request a quote → M-3173
M-3173

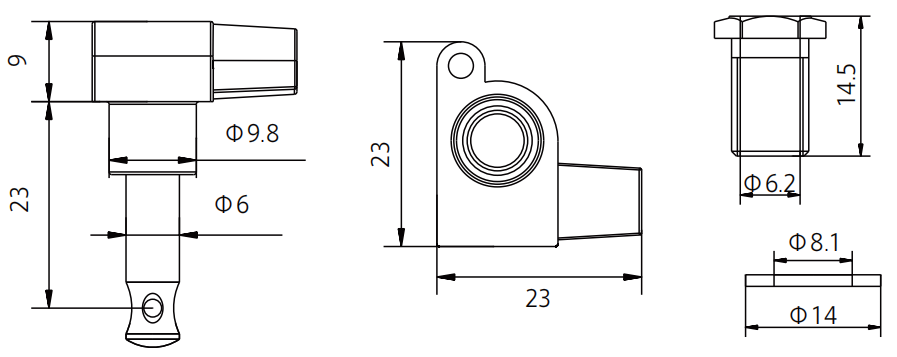

Technical drawingM-3173
Description
M-3173 is a sealed-gear machine head with φ6 mm post, 23 mm post length, φ9.8 mm headstock bore.
Tuning machine specs
- Post diameter φ6 mm
- Post length 23 mm (0.906 in)
- Headstock bore φ9.8 mm
- Housing width 23 mm (0.906 in)
- Housing depth 23 mm (0.906 in)
- Housing height 9 mm (0.354 in)
- Bushing height 14.5 mm (0.571 in)
- Bushing outer diameter φ6.2 mm
- Washer outer diameter φ14 mm
- Mount style Single-screw mounting tab
Hardware
- Material Zinc alloy
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Sealed-gear machine head
- Single-screw mounting tab
About measurements
- Post diameter
-
6 mm (0.236 in)
Diameter of the string post where the string is wound.
- Headstock bore
-
9.8 mm (0.386 in)
Recommended headstock hole diameter for the tuner collar.
Gear ratio options
Standard ratio 18:1
Economy ratio 15:1
Contact us to confirm the ratio supplied for your model and configuration.
