GUITAR MACHINE HEADS
Request a quote → M-4110SH
M-4110SH

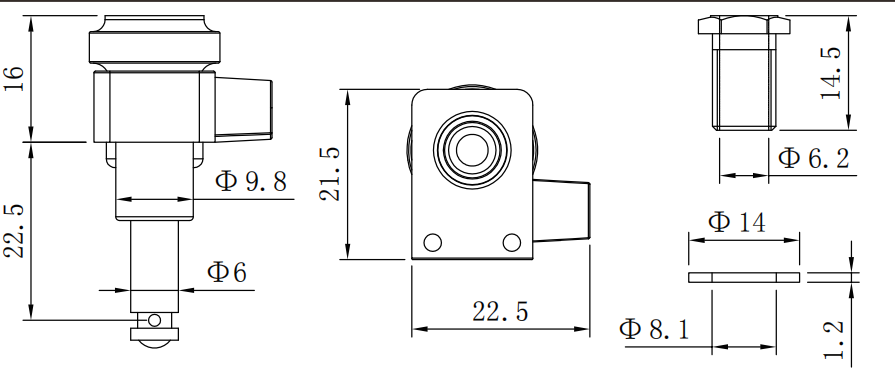

Technical drawingM-4110SH
Description
M-4110SH is a locking sealed-gear machine head with φ6 mm post, 22.5 mm post length, φ9.8 mm headstock bore.
Tuning machine specs
- Post diameter φ6 mm
- Post length 22.5 mm (0.886 in)
- Headstock bore φ9.8 mm
- Housing width 22.5 mm (0.886 in)
- Housing depth 21.5 mm (0.846 in)
- Housing height 16 mm (0.63 in)
- Bushing height 14.5 mm (0.571 in)
- Washer outer diameter φ14 mm
- Mount style Two-pin plate mount
Hardware
- Material Zinc alloy
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Rear locking thumbwheel
- Two-pin plate mount
About measurements
- Post diameter
-
6 mm (0.236 in)
Diameter of the string post where the string is wound.
- Headstock bore
-
9.8 mm (0.386 in)
Recommended headstock hole diameter for the tuner collar.
Configurations
Gear ratio
15:1 20:1
