M-6109

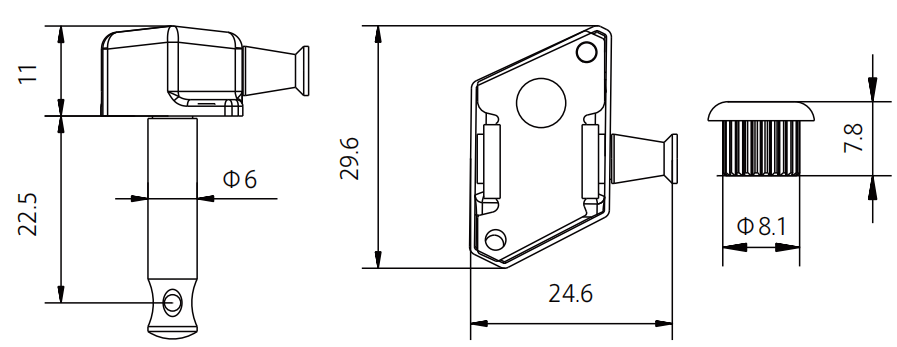

Technical drawingM-6109
Description
M-6109 is a sealed-gear; press-fit bushing with φ6 mm post, 22.5 mm post length, φ8.1 mm headstock bore.
Tuning machine specs
- Post diameter φ6 mm
- Post length 22.5 mm (0.886 in)
- Housing width 24.6 mm (0.969 in)
- Housing depth 29.6 mm (1.165 in)
- Housing height 11 mm (0.433 in)
- Bushing height 7.8 mm (0.307 in)
- Bushing outer diameter φ8.1 mm
- Mount style Two-screw diagonal mount
Hardware
- Material Zinc alloy
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Sealed-gear; press-fit bushing
- Two-screw diagonal mount
About measurements
- Post diameter
-
6 mm (0.236 in)
Diameter of the string post where the string is wound.
Gear ratio options
Standard ratio 18:1
Economy ratio 15:1
Contact us to confirm the ratio supplied for your model and configuration.
