M-7076ASL

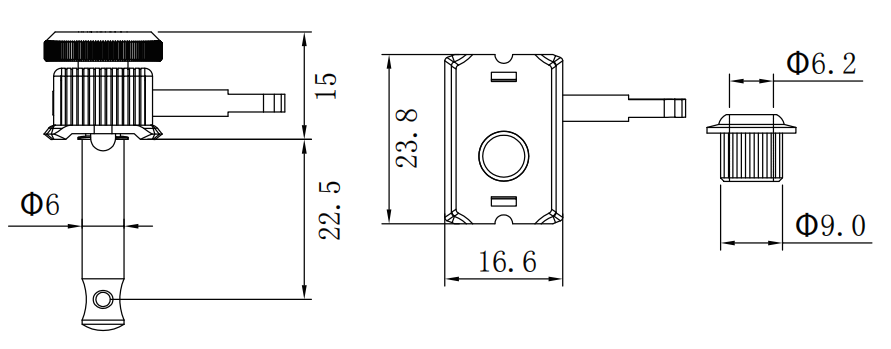

Technical drawingM-7076ASL
Description
M-7076ASL is a locking open-gear machine head with φ6 mm post, 22.5 mm post length, φ9.0 mm headstock bore.
Tuning machine specs
- Post diameter φ6 mm
- Post length 22.5 mm (0.886 in)
- Headstock bore φ9 mm
- Housing width 16.6 mm (0.654 in)
- Housing depth 23.8 mm (0.937 in)
- Housing height 15 mm (0.591 in)
- Mount style Two-screw vintage plate mount
Hardware
- Material Zinc alloy
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Rear locking thumbwheel
- Vintage rectangular plate
About measurements
- Post diameter
-
6 mm (0.236 in)
Diameter of the string post where the string is wound.
- Headstock bore
-
9 mm (0.354 in)
Recommended headstock hole diameter for the tuner collar.
Configurations
Gear ratio
15:1 18:1
