M-7286C

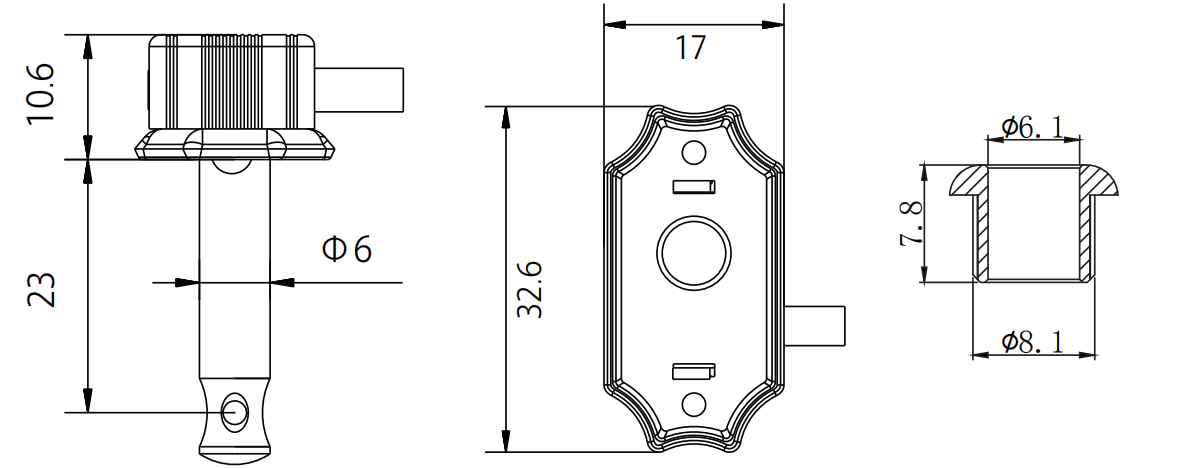

Technical drawingM-7286C
Description
M-7286C is an open-gear machine head with φ6 mm post, 23 mm post length, φ8.1 mm headstock bore.
Tuning machine specs
- Post diameter φ6 mm
- Post length 23 mm (0.906 in)
- Headstock bore φ8.1 mm
- Housing width 17 mm (0.669 in)
- Housing depth 32.6 mm (1.283 in)
- Housing height 10.6 mm (0.417 in)
- Bushing height 7.8 mm (0.307 in)
- Mount style Two-screw scalloped plate mount
Hardware
- Material Zinc alloy
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Scalloped decorative plate
- Press-fit ribbed bushing
About measurements
- Post diameter
-
6 mm (0.236 in)
Diameter of the string post where the string is wound.
- Headstock bore
-
8.1 mm (0.319 in)
Recommended headstock hole diameter for the tuner collar.
Configurations
Gear ratio
15:1
