GUITAR MACHINE HEADS
Request a quote → M-8012
M-8012
M-8012
Loading 3D model…
Loading 3D model…
Description

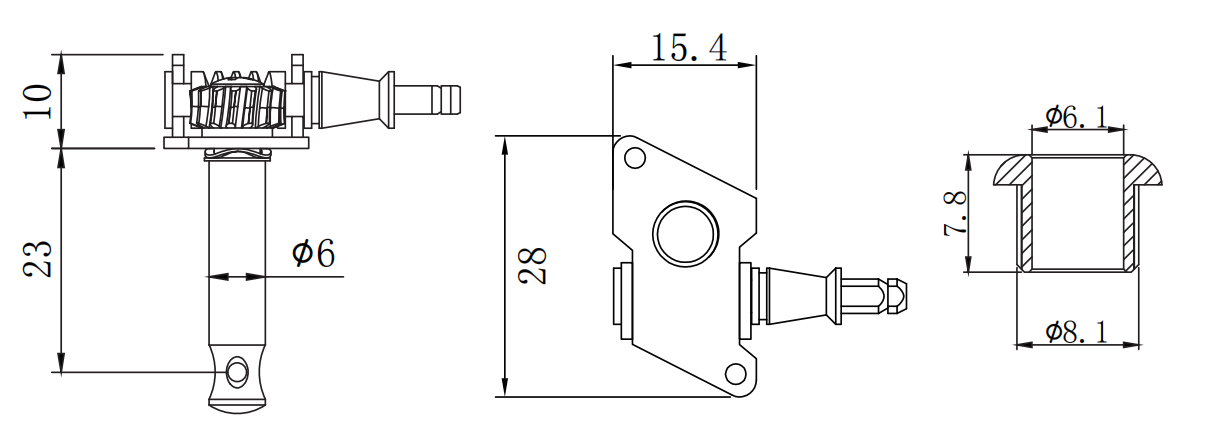

M-8012 is a open-gear machine head with φ6 mm post, 23 mm post length, φ8.1 mm headstock bore.
Tuning machine specs
- Post diameter φ6 mm
- Post length 23 mm (0.906 in)
- Housing width 15.4 mm (0.606 in)
- Housing depth 28 mm (1.102 in)
- Housing height 10 mm (0.394 in)
- Bushing height 7.8 mm (0.307 in)
- Bushing outer diameter φ8.1 mm
- Mount style Two-screw diagonal mount
Hardware
- Material Zinc alloy
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Open-gear machine head
- Two-screw diagonal mount
About measurements
- Post diameter
-
6 mm (0.236 in)
Diameter of the string post where the string is wound.
Configurations
Gear ratio
15:1 18:1
