GUITAR MACHINE HEADS
Request a quote → M-9022
M-9022

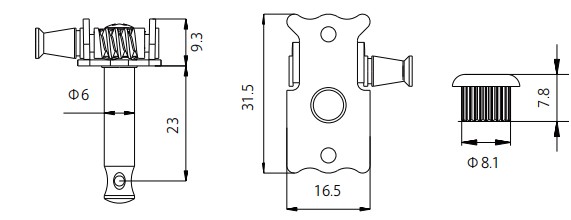

Technical drawingM-9022
Description
M-9022 is an open-gear machine head with a white pearloid oval button, brass gear, and embossed two-screw decorative plate.
Tuning machine specs
- Mount style Two-screw decorative plate mount
Hardware
- Material Zinc alloy / brass (standard)
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Open-gear mechanism
- White pearloid oval button
- Brass gear with black screw
- Embossed chrome base plate
About measurements
- Mount hole spacing
-
Product photo only (M-9022.jpg); no dimensioned drawing in dim-cache.
Center-to-center distance between mounting holes on the bridge plate.
Gear ratio options
Standard ratio 18:1
Economy ratio 15:1
Contact us to confirm the ratio supplied for your model and configuration.
