BASS MACHINE HEADS
Request a quote → MB-2002
MB-2002
MB-2002
Loading 3D model…
Loading 3D model…
Description

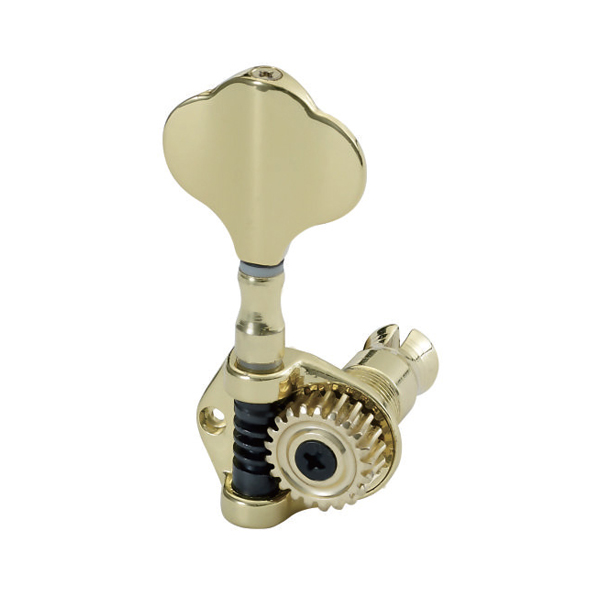

MB-2002 is a bass machine head with φ13 mm post, 33 mm post length, φ14 mm headstock bore.

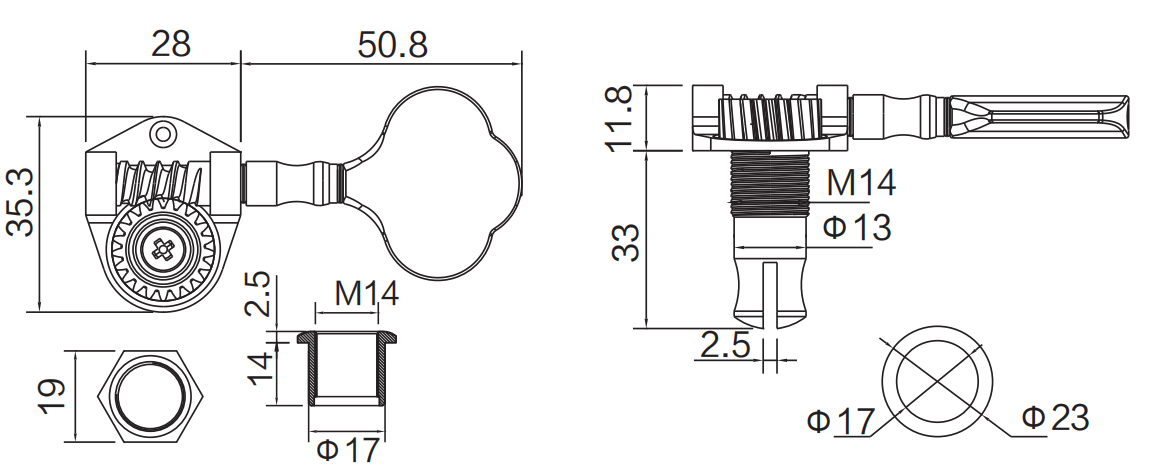

Tuning machine specs
- Post diameter φ13 mm
- Post length 33 mm (1.299 in)
- Headstock bore φ14 mm
- Housing width 28 mm (1.102 in)
- Housing depth 35.3 mm (1.39 in)
- Housing height 11.8 mm (0.465 in)
- Bushing height 14 mm (0.551 in)
- Washer outer diameter φ23 mm
- Mount style Single-screw mounting tab
Hardware
- Material Zinc alloy
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Open-gear machine head
- Single-screw mounting tab
About measurements
- Post diameter
-
13 mm (0.512 in)
Diameter of the string post where the string is wound.
- Headstock bore
-
14 mm (0.551 in)
Recommended headstock hole diameter for the tuner collar.
Configurations
Gear ratio options
Standard ratio 18:1
Economy ratio 15:1
Contact us to confirm the ratio supplied for your model and configuration.
