MB-3101

BASS MACHINE HEADS

MB-3101

MB-3101

Request a quote →

MB-3101

Description

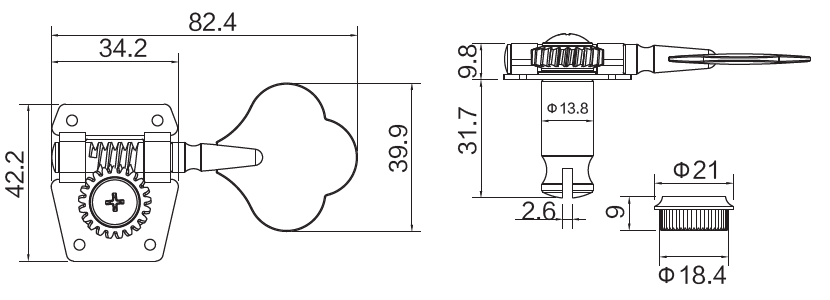

MB-3101 is a bass machine head with φ13.8 mm post, 31.7 mm post length, φ18.4 mm headstock bore.

Tuning machine specs

Post diameter φ13.8 mm
Post length 31.7 mm (1.248 in)
Headstock bore φ18.4 mm
Housing width 34.2 mm (1.346 in)
Housing depth 42.2 mm (1.661 in)
Housing height 9.8 mm (0.386 in)
Bushing height 9 mm (0.354 in)
Washer outer diameter φ21 mm
Mount style Four-screw plate mount

Hardware

Material Zinc alloy
Adjustment Tuning adjustment
Finish More colors — see matching swatches

Features

Open-gear machine head
Four-screw plate mount

About measurements

Post diameter

13.8 mm (0.543 in)

Diameter of the string post where the string is wound.

Headstock bore

18.4 mm (0.724 in)

Recommended headstock hole diameter for the tuner collar.

Configurations
