BASS MACHINE HEADS
Request a quote → MB-3288
MB-3288
MB-3288
Loading 3D model…
Loading 3D model…
Description

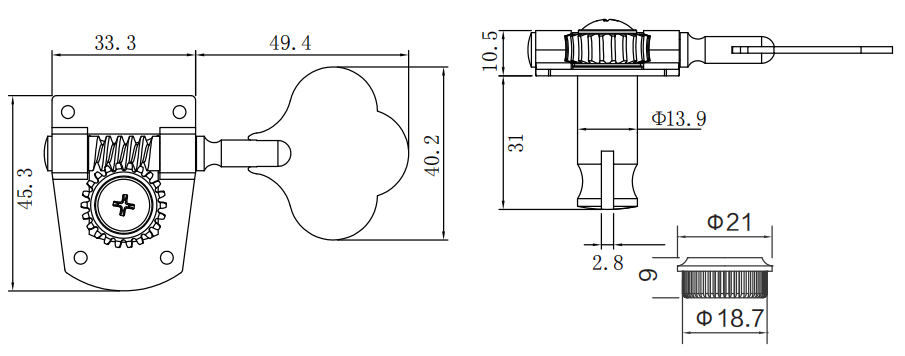

MB-3288 is a bass machine head with φ13.9 mm post, 31 mm post length, φ18.7 mm headstock bore.
Tuning machine specs
- Post diameter φ13.9 mm
- Post length 31 mm (1.22 in)
- Headstock bore φ18.7 mm
- Housing width 33.3 mm (1.311 in)
- Housing depth 45.3 mm (1.783 in)
- Housing height 10.5 mm (0.413 in)
- Bushing height 9 mm (0.354 in)
- Washer outer diameter φ21 mm
- Mount style Four-screw plate mount
Hardware
- Material Zinc alloy
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Open-gear machine head
- Four-screw plate mount
About measurements
- Post diameter
-
13.9 mm (0.547 in)
Diameter of the string post where the string is wound.
- Headstock bore
-
18.7 mm (0.736 in)
Recommended headstock hole diameter for the tuner collar.
Configurations
Gear ratio
22:1
