BASS MACHINE HEADS
Request a quote → MB-372A
MB-372A

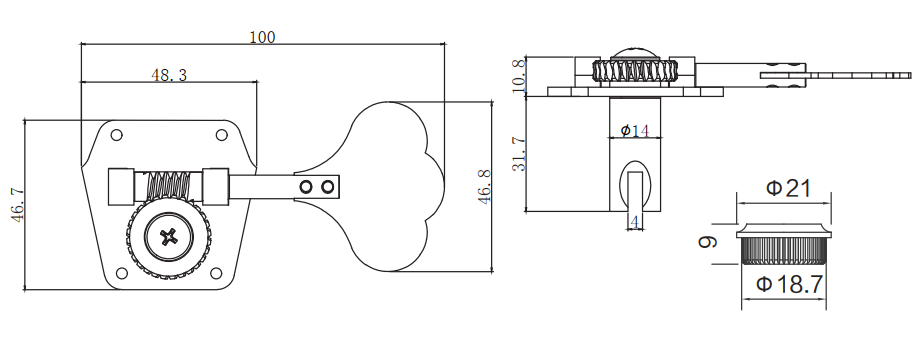

Technical drawingMB-372A
Description
MB-372A is a bass machine head with φ14 mm post, 31.7 mm post length, φ18.7 mm headstock bore.
Tuning machine specs
- Post diameter φ14 mm
- Post length 31.7 mm (1.248 in)
- Headstock bore φ18.7 mm
- Housing width 48.3 mm (1.902 in)
- Housing depth 46.7 mm (1.839 in)
- Housing height 10.8 mm (0.425 in)
- Bushing height 9 mm (0.354 in)
- Washer outer diameter φ21 mm
- Mount style Four-screw plate mount
Hardware
- Material Zinc alloy
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Open-gear machine head
- Four-screw plate mount
About measurements
- Post diameter
-
14 mm (0.551 in)
Diameter of the string post where the string is wound.
- Headstock bore
-
18.7 mm (0.736 in)
Recommended headstock hole diameter for the tuner collar.
Configurations
Gear ratio
15:1 18:1
