BASS MACHINE HEADS
Request a quote → MB-6001
MB-6001
MB-6001
Loading 3D model…
Loading 3D model…
Description

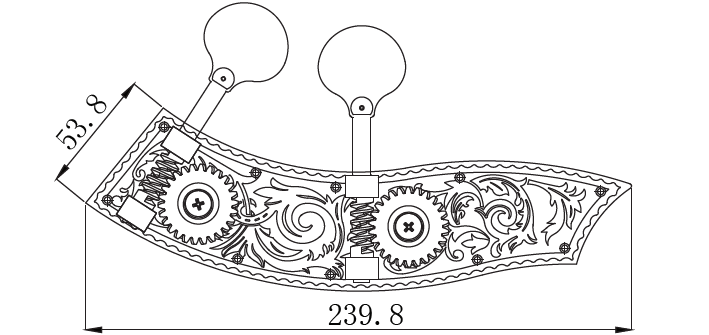

MB-6001 is a bass machine head plate assembly with two open-gear tuners on a 239.8 × 53.8 mm engraved plate.
Tuning machine specs
- Post diameter φ10 mm
- Post length 24 mm (0.945 in)
- Headstock bore φ11.7 mm
- Housing width 239.8 mm (9.441 in)
- Housing depth 53.8 mm (2.118 in)
- Housing height 53.8 mm (2.118 in)
- Bushing height 11.7 mm (0.461 in)
- Washer outer diameter φ15.5 mm
- Mount style Engraved plate mount with perimeter screw holes
Hardware
- Material Zinc alloy
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Dual-tuner bass machine head plate
- Open-gear mechanism
- Floral scrollwork engraving
- 26:1 gear ratio
About measurements
- Post diameter
-
10 mm (0.394 in)
Diameter of the string post where the string is wound.
- Headstock bore
-
11.7 mm (0.461 in)
Recommended headstock hole diameter for the tuner collar.
Configurations
Gear ratio
26:1
