MB-7069

BASS MACHINE HEADS

MB-7069

MB-7069

Request a quote →

MB-7069

Description

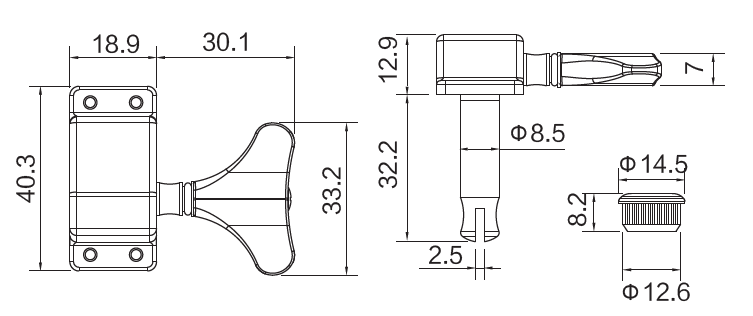

MB-7069 is a bass machine head with φ8.5 mm post, 32.2 mm post length, φ12.6 mm headstock bore.

Tuning machine specs

Post diameter φ8.5 mm
Post length 32.2 mm (1.268 in)
Headstock bore φ12.6 mm
Housing width 18.9 mm (0.744 in)
Housing depth 40.3 mm (1.587 in)
Housing height 12.9 mm (0.508 in)
Bushing height 8.2 mm (0.323 in)
Washer outer diameter φ14.5 mm
Mount style Four-screw plate mount

Hardware

Material Zinc alloy
Adjustment Tuning adjustment
Finish More colors — see matching swatches

Features

Open-gear bass machine head
Four-screw plate mount
Clover-leaf button
Slotted post

About measurements

Post diameter

8.5 mm (0.335 in)

Diameter of the string post where the string is wound.

Headstock bore

12.6 mm (0.496 in)

Recommended headstock hole diameter for the tuner collar.

Configurations
