CLASSIC MACHINE HEADS
Request a quote → N-1667C
N-1667C

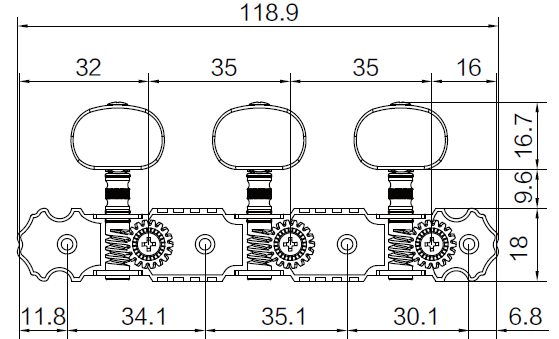

Technical drawingN-1667C
Description
N-1667C 3-on-a-plate classical guitar tuners, 118.9 × 18 mm plate, 35 mm post spacing.
Tuning machine specs
- Gear count 3
- Plate width 18 mm (0.709 in)
- Plate length 118.9 mm (4.681 in)
- Mount style 3-on-a-plate open gear; oval buttons
- Post spacing 35 mm (1.378 in)
- Reference Four screw holes: 11.8 mm from left edge, then 34.1 mm, 35.1 mm, 30.1 mm center spacing; 6.8 mm to right edge.
Hardware
- Material Brass / zinc alloy (standard)
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Scalloped wavy plate edge
- Circular motifs around screw holes
About measurements
- Mount hole spacing
-
35 mm (1.378 in)
Center-to-center distance between mounting holes on the bridge plate.
Gear ratio options
Standard ratio 18:1
Economy ratio 15:1
Contact us to confirm the ratio supplied for your model and configuration.
