CLASSIC MACHINE HEADS
Request a quote → N-1962C
N-1962C

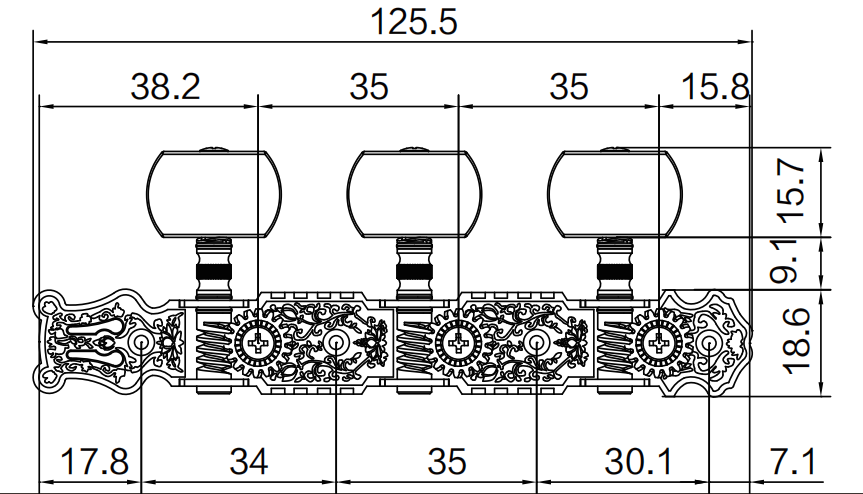

Technical drawingN-1962C
Description
N-1962C 3-on-a-plate classical guitar tuners, 125.5 × 18.6 mm engraved plate, 35 mm post spacing.
Tuning machine specs
- Gear count 3
- Plate width 18.6 mm (0.732 in)
- Plate length 125.5 mm (4.941 in)
- Mount style 3-on-a-plate open gear; oval buttons
- Post spacing 35 mm (1.378 in)
- Reference Four screw holes: 17.8 mm from left edge, then 34 mm, 35 mm, 30.1 mm center spacing; 7.1 mm to right edge.
Hardware
- Material Brass / zinc alloy (standard)
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Ornate floral engraved plate
- Oval tuning buttons
About measurements
- Mount hole spacing
-
35 mm (1.378 in)
Center-to-center distance between mounting holes on the bridge plate.
Gear ratio options
Standard ratio 18:1
Economy ratio 15:1
Contact us to confirm the ratio supplied for your model and configuration.
