Description

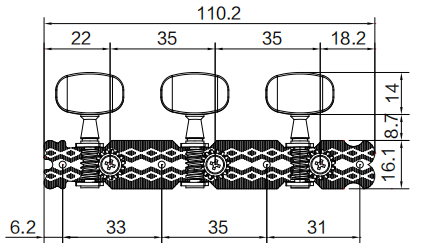

N-2029 3-on-a-plate classical guitar tuners, 110.2 × 16.1 mm plate, 35 mm post spacing.
Tuning machine specs
- Gear count 3
- Plate width 16.1 mm (0.634 in)
- Plate length 110.2 mm (4.339 in)
- Mount style 3-on-a-plate open gear; oval buttons
- Post spacing 35 mm (1.378 in)
- Reference Four screw holes: 6.2 mm from left edge, then 33 mm, 35 mm, 31 mm center spacing.
Hardware
- Material Brass / zinc alloy (standard)
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Diamond lattice patterned plate
- Scalloped plate ends
About measurements
- Mount hole spacing
-
35 mm (1.378 in)
Center-to-center distance between mounting holes on the bridge plate.
Gear ratio options
Standard ratio 18:1
Economy ratio 15:1
Contact us to confirm the ratio supplied for your model and configuration.
