N-3022

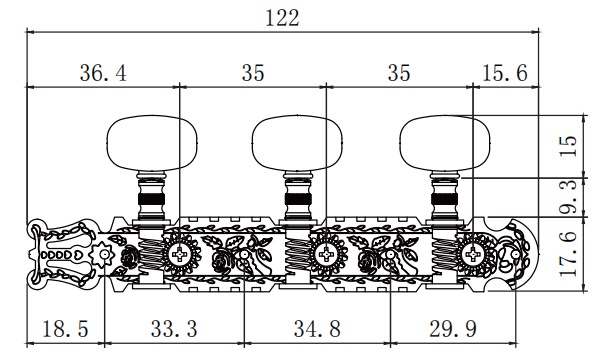

Technical drawingN-3022
Description
N-3022 3-on-a-plate classical guitar tuners, 122 × 17.6 mm engraved plate, 35 mm post spacing.
Tuning machine specs
- Gear count 3
- Plate width 17.6 mm (0.693 in)
- Plate length 122 mm (4.803 in)
- Mount style 3-on-a-plate open gear; oval buttons
- Post spacing 35 mm (1.378 in)
- Reference Four screw holes: 18.5 mm from left edge, then 33.3 mm, 34.8 mm, 29.9 mm center spacing.
Hardware
- Material Brass / zinc alloy (standard)
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Rose and leaf embossed engraving
- Lyre-style decorative left end
About measurements
- Mount hole spacing
-
35 mm (1.378 in)
Center-to-center distance between mounting holes on the bridge plate.
Gear ratio options
Standard ratio 18:1
Economy ratio 15:1
Contact us to confirm the ratio supplied for your model and configuration.
