Description

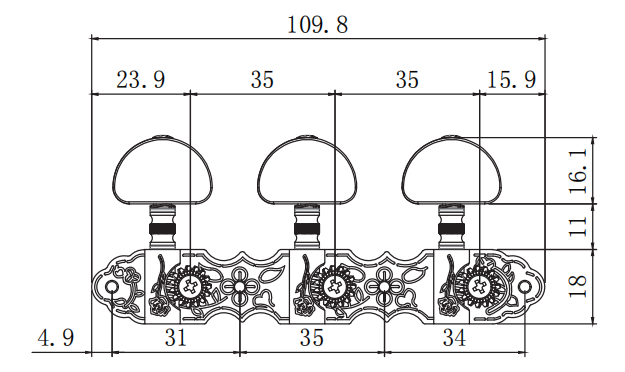

N-6028 3-on-a-plate classical guitar tuners, 109.8 × 18 mm engraved plate, 35 mm post spacing.
Tuning machine specs
- Gear count 3
- Plate width 18 mm (0.709 in)
- Plate length 109.8 mm (4.323 in)
- Mount style 3-on-a-plate open gear; oval buttons
- Post spacing 35 mm (1.378 in)
- Reference Four screw holes: 4.9 mm from left edge, then 31 mm, 35 mm, 34 mm center spacing.
Hardware
- Material Brass / zinc alloy (standard)
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Ornate floral and leaf engraved plate
- Half-moon oval buttons
About measurements
- Mount hole spacing
-
35 mm (1.378 in)
Center-to-center distance between mounting holes on the bridge plate.
Gear ratio options
Standard ratio 18:1
Economy ratio 15:1
Contact us to confirm the ratio supplied for your model and configuration.
