CLASSIC MACHINE HEADS
Request a quote → N-7268
N-7268
N-7268
Loading 3D model…
Loading 3D model…
Description

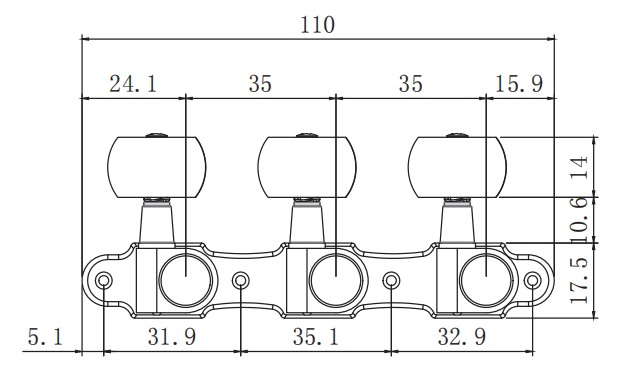

N-7268 3-on-a-plate classical guitar tuners, 110 × 17.5 mm plate, 35 mm post spacing.
Tuning machine specs
- Gear count 3
- Plate width 17.5 mm (0.689 in)
- Plate length 110 mm (4.331 in)
- Mount style 3-on-a-plate open gear; oval buttons
- Post spacing 35 mm (1.378 in)
- Reference Four screw holes: 5.1 mm from left edge, then 31.9 mm, 35.1 mm, 32.9 mm center spacing.
Hardware
- Material Brass / zinc alloy (standard)
- Adjustment Tuning adjustment
- Finish More colors — see matching swatches
Features
- Scalloped contoured plate around gears
- Four-hole mounting pattern
About measurements
- Mount hole spacing
-
35 mm (1.378 in)
Center-to-center distance between mounting holes on the bridge plate.
Gear ratio options
Standard ratio 18:1
Economy ratio 15:1
Contact us to confirm the ratio supplied for your model and configuration.
