Description

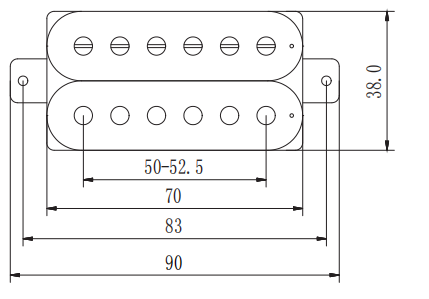

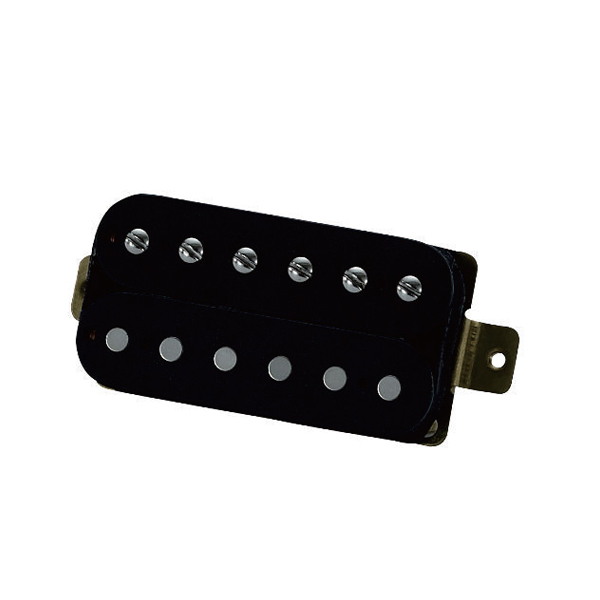

P-2002 is a 6-string humbucker, 90 × 38 mm, 83 mm mount spacing.
Pickup specs
- String count 6-string
- Overall width 38 mm (1.496 in)
- Overall length 90 mm (3.543 in)
- Mount spacing 83 mm (3.268 in)
- Reference Body length 70 mm; pole spacing 50–52.5 mm
Hardware
- Material Alnico / ceramic magnets; metal cover or bobbin (per model)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Screw pole row and slug pole row
- Side mounting tabs
About measurements
- Mount hole spacing
-
83 mm (3.268 in)
Center-to-center distance between mounting holes on the bridge plate.
