Guitar Pickups
Request a quote → P-2005
P-2005
P-2005
Loading 3D model…
Loading 3D model…
Description

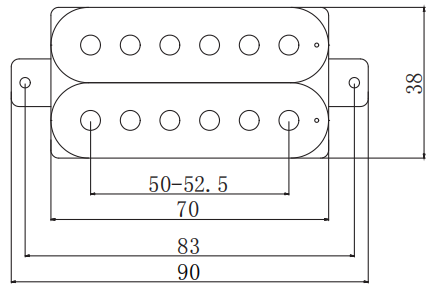

P-2005 is a 6-string humbucker pickup with a 70 × 38 mm body, 83 mm mount spacing, and 50–52.5 mm pole spacing.
Pickup specs
- String count 6-string
- Overall width 38 mm (1.496 in)
- Overall length 90 mm (3.543 in)
- Mount spacing 83 mm (3.268 in)
- Reference Overall width including tabs 90 mm
Hardware
- Material Alnico / ceramic magnets; metal cover or bobbin (per model)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Dual-coil humbucker with 6 pole pieces per coil
- Side mounting tabs with one hole each
- Outer pole spacing 50–52.5 mm
About measurements
- Mount hole spacing
-
83 mm (3.268 in)
Center-to-center distance between mounting holes on the bridge plate.
