Bass Pickups
Request a quote → PK-3002
PK-3002
PK-3002
Loading 3D model…
Loading 3D model…
Description

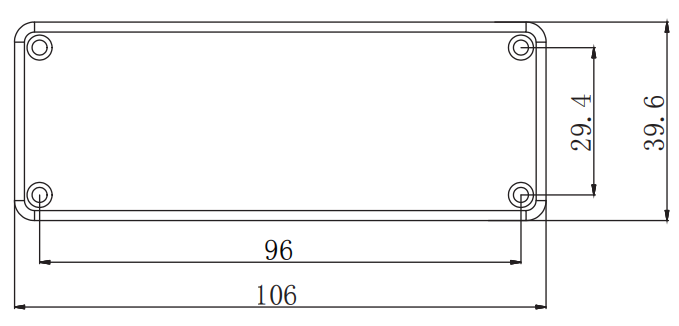

PK-3002 is a pickup cover with a 106 × 39.6 mm body and 96 mm mount spacing.
Pickup cover specs
- Overall width 39.6 mm (1.559 in)
- Overall length 106 mm (4.173 in)
- Mount spacing 96 mm (3.78 in)
- Reference Four corner mounting holes on 96 mm × 29.4 mm centers
Hardware
- Material Plastic / metal cover (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Closed cover without pole holes
- Rectangular plate with rounded corners and four corner mounting holes
About measurements
- Mount hole spacing
-
96 mm (3.78 in)
Center-to-center distance between mounting holes on the bridge plate.
