Description

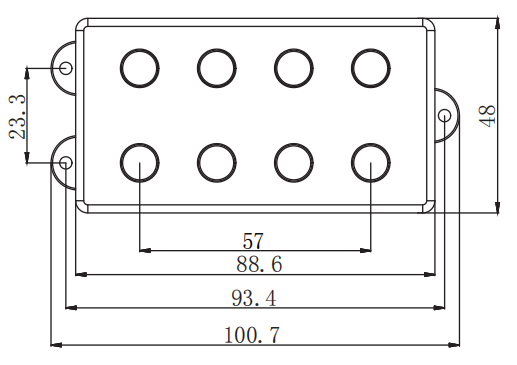

PK-5001 is a pickup cover with an 88.6 × 48 mm body and 93.4 mm mount spacing.
Pickup cover specs
- Overall width 48 mm (1.89 in)
- Overall length 88.6 mm (3.488 in)
- Mount spacing 93.4 mm (3.677 in)
- Reference Overall length including tabs 100.7 mm; left-side hole spacing 23.3 mm; outer pole spacing 57 mm
Hardware
- Material Plastic / metal cover (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Eight pole piece holes in two rows of four
- Three mounting tabs with two holes on the left and one on the right
About measurements
- Mount hole spacing
-
93.4 mm (3.677 in)
Center-to-center distance between mounting holes on the bridge plate.
