Bass Pickups
Request a quote → PK-5005
PK-5005
PK-5005
Loading 3D model…
Loading 3D model…
Description

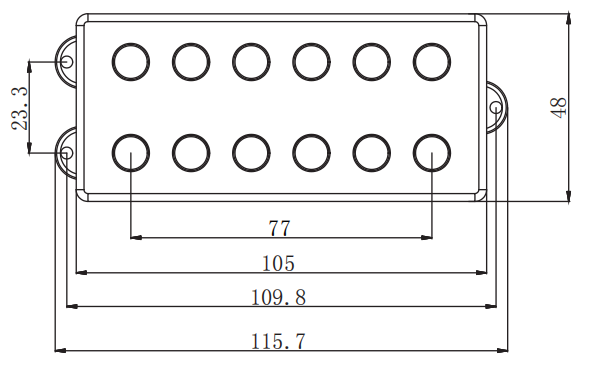

PK-5005 is a pickup cover with a 105 × 48 mm body and 109.8 mm mount spacing.
Pickup cover specs
- Overall width 48 mm (1.89 in)
- Overall length 105 mm (4.134 in)
- Mount spacing 109.8 mm (4.323 in)
- Reference Overall length including tabs 115.7 mm; left-side hole spacing 23.3 mm; outer pole spacing 77 mm
Hardware
- Material Plastic / metal cover (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Twelve pole piece holes in two rows of six
- Three mounting tabs with two holes on the left and one on the right
About measurements
- Mount hole spacing
-
109.8 mm (4.323 in)
Center-to-center distance between mounting holes on the bridge plate.
