Bass Pickups
Request a quote → PK-5008
PK-5008
PK-5008
Loading 3D model…
Loading 3D model…
Description

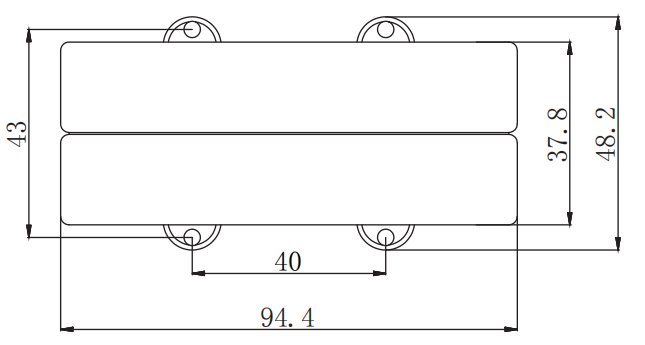

PK-5008 is a pickup cover with a 94.4 × 37.8 mm body and 40 mm mount spacing.
Pickup cover specs
- Overall width 37.8 mm (1.488 in)
- Overall length 94.4 mm (3.717 in)
- Mount spacing 40 mm (1.575 in)
- Reference Overall width including tabs 48.2 mm; vertical mounting hole spacing 43 mm
Hardware
- Material Plastic / metal cover (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Closed split dual-coil cover without pole holes
- Four corner mounting tabs with one hole each
About measurements
- Mount hole spacing
-
40 mm (1.575 in)
Center-to-center distance between mounting holes on the bridge plate.
