Bass Pickups
Request a quote → PK-5009
PK-5009
PK-5009
Loading 3D model…
Loading 3D model…
Description

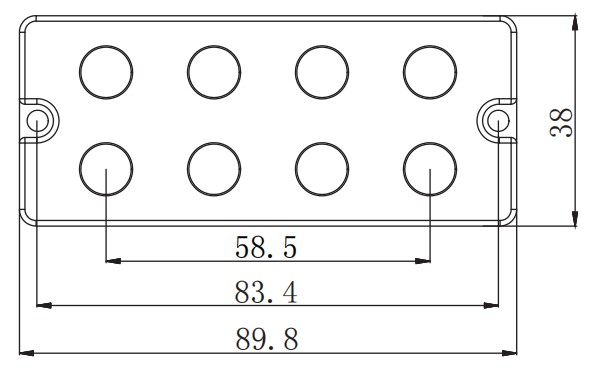

PK-5009 is a pickup cover with an 89.8 × 38 mm body and 83.4 mm mount spacing.
Pickup cover specs
- Overall width 38 mm (1.496 in)
- Overall length 89.8 mm (3.535 in)
- Mount spacing 83.4 mm (3.283 in)
- Reference Outer pole spacing 58.5 mm
Hardware
- Material Plastic / metal cover (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Eight pole piece holes in two rows of four
- Side mounting tabs with one hole each
About measurements
- Mount hole spacing
-
83.4 mm (3.283 in)
Center-to-center distance between mounting holes on the bridge plate.
